100W Access Control Turnstile Brushless Motor Automatic Intelligent Systems

  • 1
  • 2

Brand Name : Turboo Euro

Model Number : ES3215

Certification : CE, ISO9001

Place of Origin : Guangdong China

MOQ : 1 pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1500+PCS PER MONTH

Delivery Time : 7-10 working days

Packaging Details : Wooden Case Package

Product Size : 1500*100*980mm

Pass Width : 600-900mm

Communication Interface : RS485,Dry Contact

Pass Rate : 35-40 Persons/minute

Infrared Sensor : 6 Pairs

Driver : Brushless

Operating Time : 0.2 Seconds

Working Temperature : -25 To +70 ℃

Contact Now

Access Control Turnstile Brushless Motor Automatic Intelligent Systems Turboo
Product Description
ES3215 swing gate which is made of SUS 304 in a modern style. It has anti-collision and anti-clamp function. It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
Turboo Speed gate turnstile with intelligent channel management system can adoptnon-comtact IC , ID card or bar code reader identity authentication technology, combined with micro-control technology, communication technology and computer network technology, thus realizing full-scale channel real-time monitoring and management functions such as computer ticket sales, ticket inspection, inquiry, summary, statistics, reports, etc. Suitable for tourist attractions, various sports halls, exhibition halls, customs, docks, stations, enterprises and leisure venues, etc.


Product parameters

Model Number: ES3215
Product Size:
1500*100*980 mm
Pass Width: 600-900mm
Thickness: 1.2mm
Material: SUS 304
Infrared Sensor: 6 pairs
Pass rate: 35 p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 100w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles

Dimension Diagram

100W Access Control Turnstile Brushless Motor Automatic Intelligent Systems
Features And Benefits:
1.Safety first: In the fire or power-off, the door can be free to promote and ensure unimpeded
2.Various Interfaces: I/O, RS232/485,CAN interfaces, which it is convenient to control signal input, and provides convenient centralized fire control interface.
3.Two working modes: NC and NO, which is easy to deal with peak and normal use. Multiple control modes: There are unidirectional, bidirection-
al, free passage and authorization passage to meet fully the users ‘needs, which consist of nine control modes;
4.Precise positioning: precise positioning by photoelectric sensors, the work cycle of door is regular and precise positioning to ensure correct position after long work;
5.Indicator control: the indicator is able to show three status of front and back indicator (allow through, no through, system maintenance).Also which show the passage direction and passage status (A to pass,B to pass,no through), According to reasonable indicator control, which is convenient for users to management.
6.Machine core control:the two sides machine core work with coordination and synchroniztion, and the control system provide convenient management functions. the passage controller can control the machine core of all functions and settings of all parameters, which is reasonable for consisting of the various components of the machine core operation flow, and which is more intelligent and safety to design a access control function;

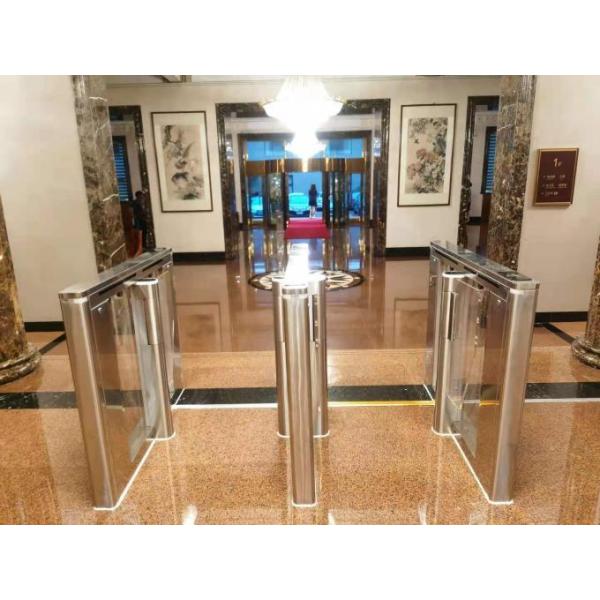

Project Case
100W Access Control Turnstile Brushless Motor Automatic Intelligent Systems
100W Access Control Turnstile Brushless Motor Automatic Intelligent Systems
Service And Shipping
100W Access Control Turnstile Brushless Motor Automatic Intelligent Systems

FAQ:
1. How about your company’s actual strength?
We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.
2. How about your package?

Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. How about the lead time?

Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.

4. How long is your warranty period?

13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
